Diagnosing fractures, avulsion fractures and occult fractures with ultrasound

Although simple radiographs are used as a first approach in diagnosing fractures, avulsion fractures and occult fractures are easy to overlook. Also, normal variants such as the growth plate in immature bones, accessory ossicles, secondary ossification centers, and canals or grooves for nutrient vessels are delineated as discontinuity of the bony surface and can mimic a fracture. When simple radiographs show no evidence of a fracture, small avulsion or occult fractures can be seen on ultrasound (US) all according to Oh et al. (2017).

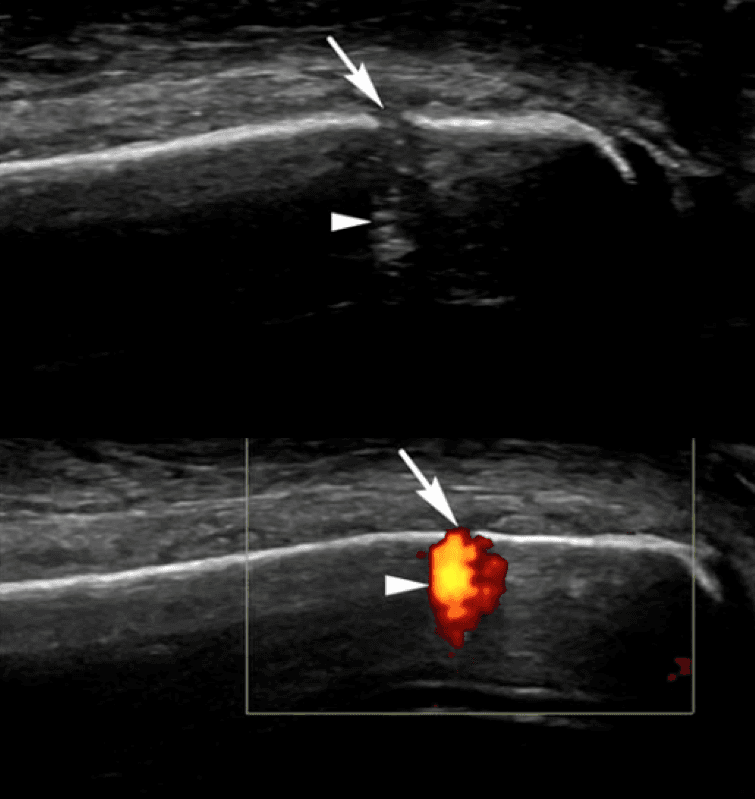

US direct criteria for a fracture include cortical discontinuity, a step-off deformity of the cortex, subperiosteal hematoma, a focal reverberation echo, overlying soft tissue edema, point tenderness on the fracture site and sometimes widening of the fracture space and movement of the bony fragments. In addition color Doppler US performed with dynamic scanning can more accurately and quickly detect fractures without radiation exposure. A dynamic scan with color Doppler sonography can be a useful fracture diagnostic tool for point-of-care or primary care facilities without access to radiography.
